Azure Infrastructure: MDClone Alerts/Cost working session:

Meeting notes on 12/10/2024

Logging

• The loggings are already set up i Splunk.
• Unify the logging in splunk.
• Splunk is there as an infosec requirement.
  • Splunk is our system logs.
• Implement a two way logging factor.
  • Use Splunk for compliance management with infosec/Azure monitor.
  • Compliance auditing = Splunk
  • General auditing = Azure Monitor.
  • Monitor capabilities (Everyone.should receive notifications).
• Azure Budgets = (Leave it as Ian, Me & Albert).
• No one receives notification from RDC:
• However, there can be individual notifications:
  • RDC - Databases/Nifi clusters notifications will be sent to Warren.
  • Alvin/Ian - Get every RDC notifications.
    • Later Ian - Will only get Medium to low priorities notifications.
• Increase Alerts to include every Virtual machine in MDClone.
• Integrate current MDClone logging to splunk and decommissioned them & onboard the new MDClone infrastructure in splunk after go live in late July/August 2025.

Budget

• Inquire about using a 3year reservation for our VM's instead of 1yr reservation.
• No possible savings on storage.
• Most backups have to do primarily with windows Virtual Machines.
  • Possible changing retention period to save on cost.
• Microsoft Defender for Cloud
  • will be decommissioned once certain VM boxes are decommissioned.
• VPN Gateway:(legacy system)
  • Might be decommissioned as it is no longer needed.
• Azure Bastion(az-vnet-wustl-mdc-bastion)
  • Bastion might be decommissioned.
• Delete All 6 disks
  • Except the disk "data".

Remediation Steps:

• Action group has been created to send out logging notifications.
• The action group name is MDClone-admin.

Rules:

• Configured a rule for CPU usage > 70%.
• Alert rule link CPU Usage Above 70 percent.
• Set up VM-administrative-activities
• Set up VM availability

Disk Deletion

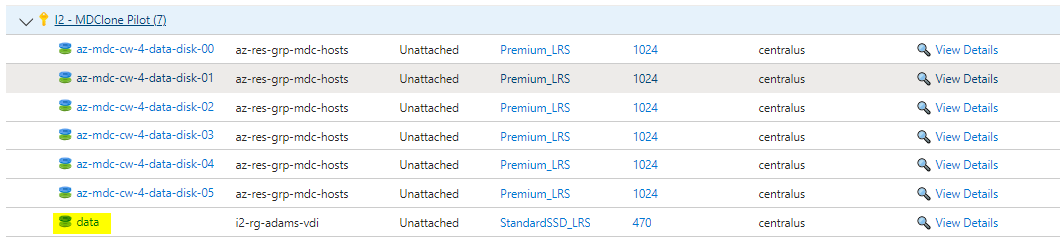

• Deleted 6 out of the 7 disk to reduce cost.
• The only disk that was not deleted was the data disk as highlighted.
• It is important to note that the data disk is 470 GIB in ssize.

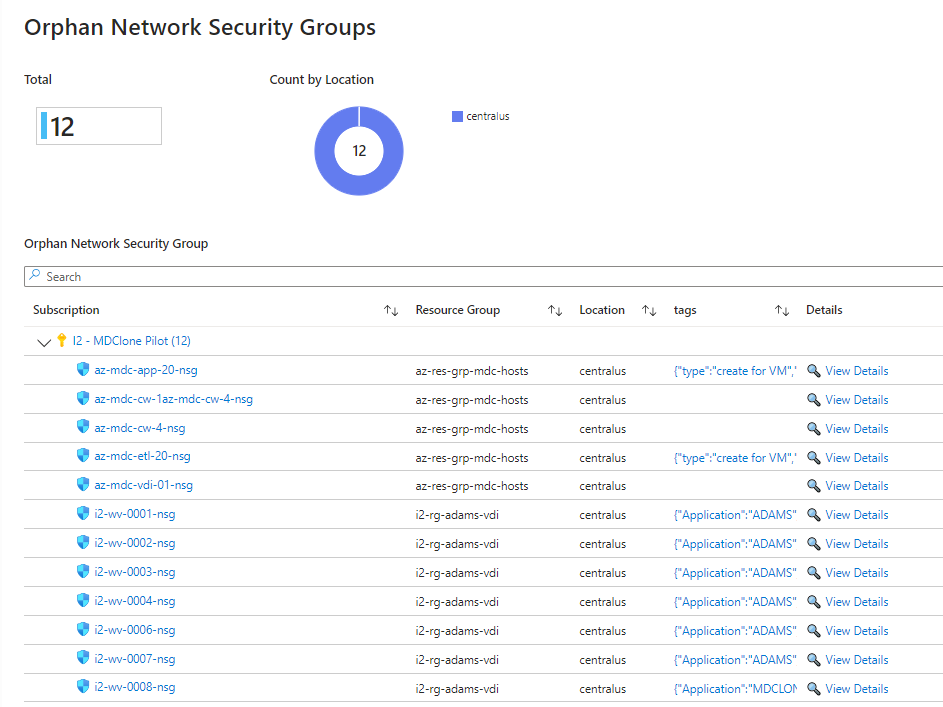

Delete Orphaned Network Security Groups:

• Deleting all of the 12 orphaned NSG as they are currently not attached to any subnet.

Azure Splunk Integration

• One of the objectives set forth by the team is to enable splunk logging on all virtual machines currently hosted in the subscription.
  • However, Azure does not allow for direct log shipping from Azure Vm's to splunk using diagnostics as it is the case with other resources in Azure.
  • There are a few alternatives to achieving this task:
    1. Enable log shipping of VM logs to splunk using Azure monitor.
       • Go to Azure Monitor > Activity Logs > Export Activity Logs > select Event Hubs > From Event hub send logs to Splunk..
    2. Ship logs to a Storage Account.
       • Go to the Azure VM > diagnostic Settings > Deploy diagnostic setting Agent on VM > Collect logs & ship it to a Storage account.
       • In the desired storage account > go to diagnostic Settings > Add diagnostic setting > Set up diagnostic setting to send logs to Event hubs -> From Event hub send logs to Splunk.
